Sheet metal fabrication is a crucial process in the manufacturing of metal parts for various industries. In the wind power industry, sheet metal fabrication plays an essential role in creating custom-made parts for wind turbines. In this article, we will focus on a case study where 100 sets of metal parts were fabricated for a wind power project.
The fabrication process for these metal parts involved laser cutting and press braking. The material used for these parts was Q345B carbon steel, which is a widely used steel grade known for its strength, durability, and excellent welding performance. The equipment used for this project included a TRUMPF fiber 3060 laser cutting machine, a 2000T press brake, and other advanced machinery.

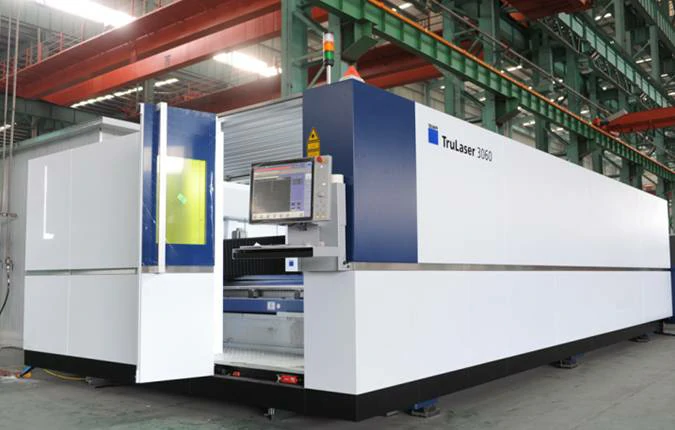

Laser cutting is a precise and efficient way of cutting metal sheets into the desired shape. In this project, the TRUMPF fiber 3060 laser cutting machine was used to cut the Q345B carbon steel sheets into the required shapes for the metal parts. The laser cutting process ensured the accuracy of the cuts, and the high-powered laser allowed for fast and efficient production of the metal parts.

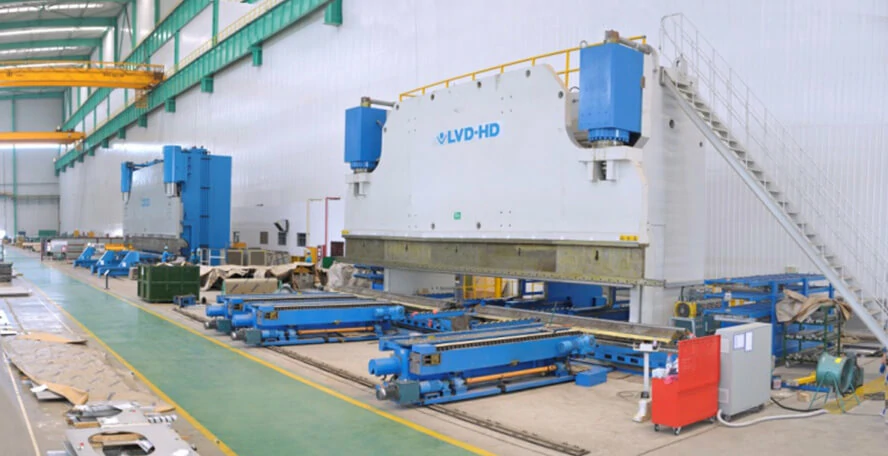

After the metal sheets were cut, they were sent to the press brake for bending and forming. The 2000T press brake used in this project allowed for accurate and consistent bending of the metal sheets. The press brake formed the metal sheets into the desired shape for the wind power project's metal parts. The press brake's high tonnage capability ensured that even the thickest metal sheets could be easily bent and formed.
The custom-made metal parts produced in this project were designed according to the customer's specific requirements. The design of the metal parts was critical to ensure the proper functioning of the wind turbine. The metal parts produced included brackets, supports, and other essential components required for the wind power project.
In conclusion, sheet metal fabrication plays a crucial role in the wind power industry. The precision and accuracy required for the fabrication process are essential to ensure the proper functioning of the wind turbines. In this case study, the use of advanced machinery such as the TRUMPF fiber 3060 laser cutting machine and the 2000T press brake allowed for the efficient production of 100 sets of custom-made metal parts. The use of Q345B carbon steel ensured the strength and durability of the metal parts produced.
