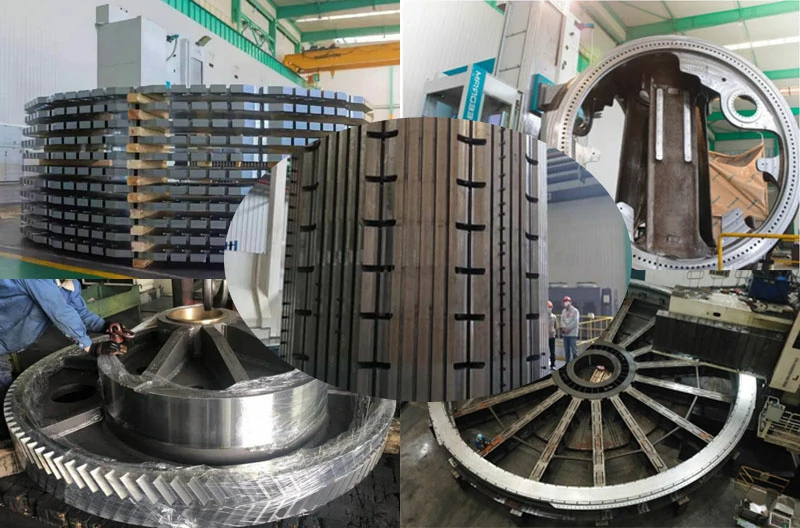

Large Steel Components Machined

Machining Services For Large, Long And Heavy Parts

While all forms of fabrication and machining take a high level of skill and expertise, large part CNC machining also requires specialized equipment large enough to handle oversized production. Defined as any part too heavy to be quickly moved by a person alone, or too large to fit within a standard CNC machine, many industries today rely on manufacturers like Openex Metal Fabrication to create large-scale, precision components.

Large Part CNC Machining Capabilities

At Openex Metal Fabrication, we offer our clients a full range of fabrication services to meet the demands of any custom large part machining project. With a broad range of boring, turning, and milling equipment, Openex offers state-of-the-art, large part CNC machining capabilities to meet the needs of multiple industries. Additionally, our secondary services make us a full-service machining partner. Our services include assembly, welding, straightening, heat treating, and more.

Large Scale Machining Services

Openex produces a vast array of extra-large parts – up to 250 tons – with our extra large Horizontal Boring Mills. Forgings, fabricated weldments, and large cast components can all be machined to your specific dimensions.

Openex has the equipment necessary to machine your finished product to perfect precision. Metal removal, turning, grinding, saw-cutting, milling – you name it. Openex uses our machining capacity as part of a complete turn-key manufacturing process and as a stand-alone service, providing customers the capacity and scale to complete their large components.

Large Scale Machining Services

Horizontal & CNC Boring

With cutting-edge equipment, Openex produces components with dimensions up to 25 meters x 8 meters with a 9m*5m rotary table. With five-axis boring capacity and a 250-ton crane, we can produce complex, large components with precision tolerances of ± .0005 inches.

Horizontal, Vertical & CNC Turning

With some of the most significant equipment in the industry, including three- and four-axis turning machines, our collection of horizontal, vertical, and CNC lathes allow us to handle parts with dimensions as large as 10 meters in diameter and 6 meters in length while maintaining a ± .001 inch tolerance.

Planner & CNC Vertical Milling

Through the years, Openex has invested in the equipment to be a top supplier for many of the world’s leading industries. Openex has over 16 large gantry machining centers (up to 40m*8m*7m), 11 large(up to 25.7 meters on the X) Horizontal Boring Mills and 15 sets of large Vertical lathe and milling machine(up to 22 meters on diameter). This type of capacity ensures your project goes smoothly without any concerns.

Quality Assurance

One of the essential workhorses for product verification is our Coordinate Measuring Machine(CMM). We use it every day to qualify machined parts that have complex geometries with tight tolerances.

At Present, we have two ZEISS CMMs-MMZ G large bridge CMM and ACCURA II bridge CMM, and one laser tracker Leica AT901.

Our quality assurance program is focused on providing confidence that quality requirements will be fulfilled, both by our internal staff and through our clients’ expectations.

Industries Served

Renewable Energy

Wind. Solar. Hydropower. Biomass. We deliver fabrication, gearing and assembly solutions that make complex, large-scale renewable energy projects happen—with the precision engineering and durability you need to withstand nature's harshest elements.

Mining

Mining and mineral processing require exceptionally tough equipment. We deliver it, with durable fabrications, industrial gearing packed with torque and power, and manufactured parts that keep mining equipment working hard for the long haul.

Power Generation

Power generation is essential to modern life. We understand the industry's biggest challenges and build the equipment and components it needs—from steam and gas turbines to high-torque industrial gearing, storage tanks, piping and process skids.

Oil and Gas

Oil and gas exploration, processing and delivery requires durable, hardworking equipment. We partner with you to make it possible, with full-service manufacturing capabilities and expertise throughout the process—upstream, midstream and downstream.

Heavy Construction

Massive size. Exceptional durability. From loaders and dozers to cranes and shovels, we help create the machines that move earth and shape communities. And we build them with the durability to withstand the hard use heavy construction demands.

Infratructure

Bridges. Roads. Railways. Tunnels. From road-building machines to massive steel bridge spans and gearboxes for moveable bridges, Broadwind manufactures the heavy machinery, structures and components that help build the nation's transportation infrastructure.

Marine

We've built some of the biggest steel fabrications. Tackled challenging welds. Engineered massive gears. And made sure they withstand extreme saltwater environments. With single-source solutions and a location right on Lake Michigan, we offer the expertise and access the marine industry demands.

Paper and Pulp

From wood handling to finishing, we've helped keep the pulp and paper industry running for over two decades. Our precision gearing and gearboxes, large-scale fabrication, and durable, complex welds deliver the reliability needed in an industry that's full speed ahead 24 hours a day.

Have a Project?

REACH OUT TO Openex

Send us your drawings, specs and other documentation to see how we may be able to assist with your metal parts machined project.
