Description:

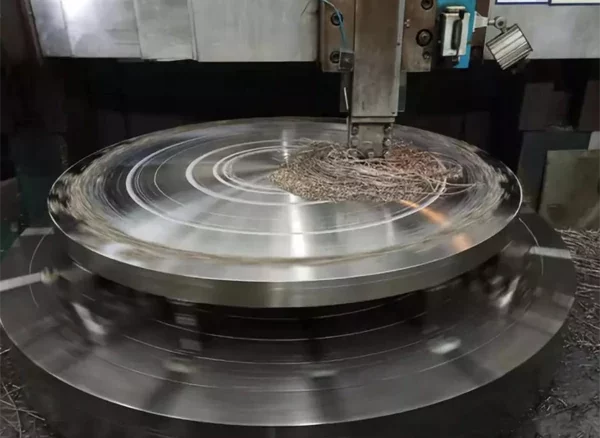

CNC Machining for Stainless Steel Large Flange
Material:
Stainless Steel
Finish:
Grinding, Polishing
Machine Tools:
Cutting Machine, Lathe, Drilling Tools
Dimensions:
As Required
Dimensions Measuring:
Coordinate Measuring Machine (CMM)
Large diameter flanges can be manufactured out of any steel material grade. They come in flange faces that include:
RTJ (Ring Type Joint)
RF (Raised Face)
FF (Flat Face)
Some of the most common applications for the large diameter flanges are for subsea / onshore pipelines and ASME pressure vessels.
Custom made large diameter flanges can come as large as the customer requires and made to their design specs. Our extensive heavy-duty manufacturing capability combined with a large inventory of plate stock allows us to meet the most complex and challenging quality and delivery requirements. We leverage numerous fabrication methods, including plate burning, CNC and conventional machining, automated flange drilling, robotic welding with automatic positioning, and many other state-of-the-art technologies to produce flanges with precise tolerances and fine surface finishes. Our expertise spans all flange types, including blind and reducing flanges, spectacle and paddle blinds, O-rings and Victaulic rings, adapter rings, and many other custom flanges. We can provide thermal stress relief, die-stamp/etching identification markings, and apply protective coatings, all in-house.
As an ISO compliant manufacturing company, we perform both in-process and final inspections to ensure flange quality. In addition to traditional dimensional measurement equipment, we use high-end laser devices to verify tolerances. We offer non-destructive testing (NDT) on flanges for the most stringent applications to confirm they are defect-free. We provide material traceability and inspection reports to document that our products meet the highest standards of excellence.
Send us your drawing, and we will reply with a quote. We offer same day shipment for stock items and provide rush and emergency services when time is a factor or service is interrupted. For more detailed information about our standard and custom flange products, contact us at sales3@openex.com.cn now.
| Flange Manufacturing Capabilities | ||
| General Capabilities | Flange Marking | Thermal Stress Relieving |
| CNC Drilling | Taping | |
| CNC Machining | Coating | |
| Conventional Machining | Non-Destructive Testing | |
| Counter Boring | Robotic Welding | |
| Counter Sinking | Automatic Welding Positioners | |
| Materials | Carbon Steel | A572-50 |
| A105 Forging | A588 | |
| A36 | HSLA | |
| A516-70 | Stainless Steel (304/304L & 316/316L) | |
| Finishing Services Available | Painting | Marking |
| Coating | Stamping | |
| Tolerance (+/-) | Industry Standard Tighter Tolerance* | |
| Inspection Services | Laser Tracker Inspection | |
| Non-Destructive Testing | ||
| *Traditional Dimensional Measurement Equipment | ||
| Additional Information | ||
| Industry Focus | Water Works | Heavy Industry |
| Wind Tower | Machine Tool | |
| Utilities | Marine | |
| Aerospace | Military | |
| Agricultural | Mining | |
| Architectural | Oil Field | |
| Auto/Truck/Transportation | Steel Mill | |
| Chemical | Packaging/Converting | |
| Construction | Power Generation | |
| Food | ||
Those customized rectangular flanges are used for heat exchangers.
A flange is a method of connecting pipes, valves, pumps, and other equipment to form a piping system. It also provides easy access for cleaning, inspection or modification. Flanges are usually welded or screwed.
Openex is a global manufacturer of various flanges. Upon request, we manufacture the forging of flanges and blinds that are custom-designed to customer dimensional requirements. We have an extensive track record of producing flanges from a wide variety of material grades. Our extensive raw material inventory allows us to manufacture forged flanges to the most challenging customer-specified product chemistry requirements.
General Capabilities:
Flange Manufacturing Types :
Materials:
General Processing:
Diameter:
Up to 10 meters OD
Contact us at sales3@openex.com.cn or call us at +86 186 5928 0806 for more information about manufacturing for flanges and to receive a free project quote today.
Dimensions: Diameter 4200mm, Thickness 390mm
Material: 16MnIV
Overlay Weld Material: 309L Stainless Steel, 347 Stainless Steel
Those overlay weld tube sheets are the key parts of water cooling pressure vessels.
Weld overlay melts one metal—the cladding layer—onto the surface of another metal of similar composition and melting point, forming a base material that is resistant to corrosion and wear. The highly versatile process may require multiple passes to properly mix and bond the metals, while meeting the design and material requirements of the cladding layer.
Customers commonly use weld overlay to balance corrosion resistant properties and costs, often coating an inexpensive metal, like carbon steel, with a more expensive base layer, such as stainless steel. Our weld overlay process uses readily available metals, reducing lead times, for a wide range of applications, including tube sheet, flanges, fittings, pipes, valves, pressure vessel nozzles and tube sheets for heat exchangers.
Tube Sheets and flange manufacturing is one of Openex's specialties. We're a tube sheet/flange maufacturer that specializes in almost all tube sheets up to 12 meters in diameter and special flanges in all styles that measure up to 10 meters O.D based on your requirements.
We have a large array of multi-spindle milling-drilling CNCs. With our CNC array, the dimension tolerance, including flatness, parallelism, perpendicular, circularity, and cylindricity can be achieved to an unrivaled tight level.
Except for tens of multi-spindle CNCs, we also have more than 11 deep-hole milling-drilling CNCs to meet some special tasks which might need holes deep up to 1200mm.
Quality Assurance
One of the essential workhorses for product verification is our Coordinate Measuring Machine(CMM). We use it every day to qualify rapid prototypes and machined parts that have complex geometries with tight tolerances.
At Present, we have two ZEISS CMMs-MMZ G large bridge CMM and ACCURA II bridge CMM, and one laser tracker Leica AT901.
Our quality assurance program is focused on providing confidence that quality requirements will be fulfilled, both by our internal staff and through our clients’ expectations.
Contact us at sales3@openex.com.cn or call us at +86 186 5928 0806 for more information about tube sheets and to receive a free project quote today.
Wind turbine flanges are ring-shaped connectors that are used to assemble the bodies of the steel towers supporting the wind turbines. Tower flange is an important wind power component for tower connection which is installed with six or seven flanges in a wind turbine. Tower Flange consists of three parts: Bottom Flange, Middle Flange, and Top Flange.
Our flanges are widely present in the following industries: Oil and Gas, Hydro, Mining, Offshore, Petrochemical, Naval, Piping, Wind power, and Nuclear.
Openex is your complete machining and steel fabrication solution — a one-stop shop — for critical wind turbine parts, such as large housings, torque arms, flanges, and more. And we help you seamlessly navigate the entire process from CNC machining and welding to painting and coating.
Components we've manufactured for wind energy
Rotor hub
Large housing
Gearboxes
Torque arms
Wind power towers
Flanges
Gears
Bearings
Other metal structures.
We offer metal fabrication of excavator bucket to customers in the heavy equipment industry. The excavator bucket would be used on medium to large excavators. Using the latest fabrication technology available, we applied our cutting, bending, welding, and machining capabilities to form the body from abrasion resistant steel plate. Our large welding robots and positioners ensured accurate and precise welds, which were UT tested to guarantee their strength.
We manufacture gearbox that are efficient, durable, and cost-effective and can be supplied in standard or modified versions. Our goal is not just to build or rebuild your gearbox, but to manufacture a product that provides an additional capability that requires less cost to maintain.
You can rely on our high-end manufacturing capabilities to deliver high-quality gearbox and gearbox internal components that exceed and outlasts OEM specifications. Our processes are super streamlined for quality assurance, fastest lead times, reliability, and best ROIs to our clients.
Over 20 years of heavy fabrication experience, capabilities and vast production equipment, we work with a wide variety of materials for all types of OEM turbine or engine projects.
For innovative OEMs of engines and turbines, Openex has extensive experience producing the following:
Openex is a global manufacturer of various flanges. Upon request, we manufacture the forging of flanges and blinds that are custom-designed to customer dimensional requirements. We have an extensive track record of producing flanges from a wide variety of material grades. Our extensive raw material inventory allows us to manufacture forged flanges to the most challenging customer-specified product chemistry requirements.
Tube Sheets and flange manufacturing is one of Openex's specialties. We're a tube sheet/flange maufacturer that specializes in almost all tube sheets up to 12 meters in diameter and special flanges in all styles that measure up to 10 meters O.D based on your requirements.
