Gantry Milling & Boring Machine -- Mitsubishi MVR-45

Distance Between Column (mm) 4250
Distance from Table Top to Spindle Nose (mm) 1950
Table Dimensions Width (mm) 3500
Length (mm) 6000
Loading Capacity Kg/m 35,000/6,0
Spindle Spindle Diameter (mm) 110
Spindle Taper ISO 50
Max. Spindle Speed /min 6000
Spindle Motor (kW, HP) VAC 22/30 kW, 30/40 HP
Throat clearance between columns mm 4250
Distance from spindle end to table sturface mm 1,950
Ram size mm 350
Ram Spindle speed /min Max.6000
Ram Spindle motor output Kw 22/30(cont./30min.    rating)
Tool storage capacity (ATC) 50
Machine weight kg/m 94,500/6.0

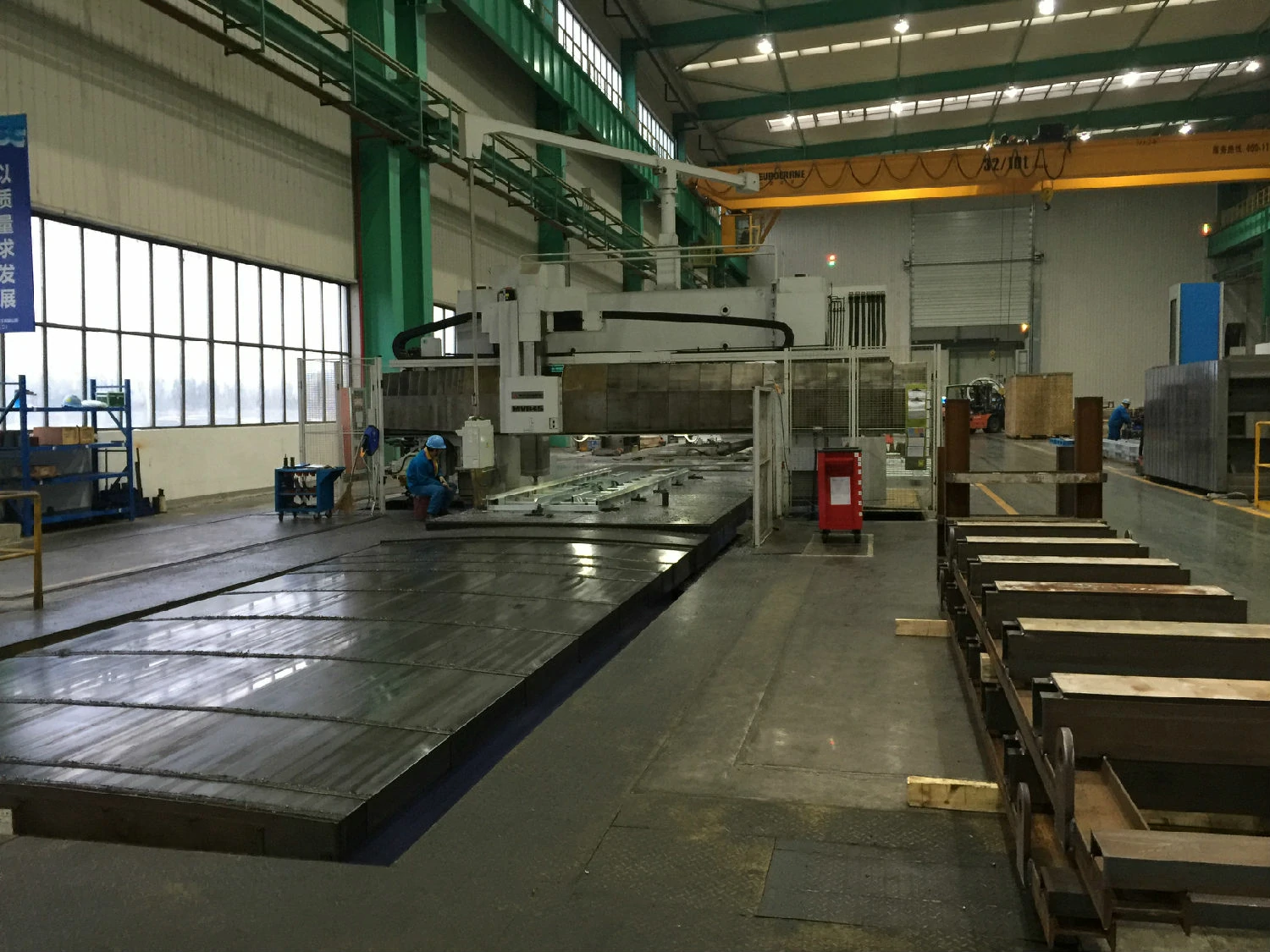

Gantry Milling & Boring Machine

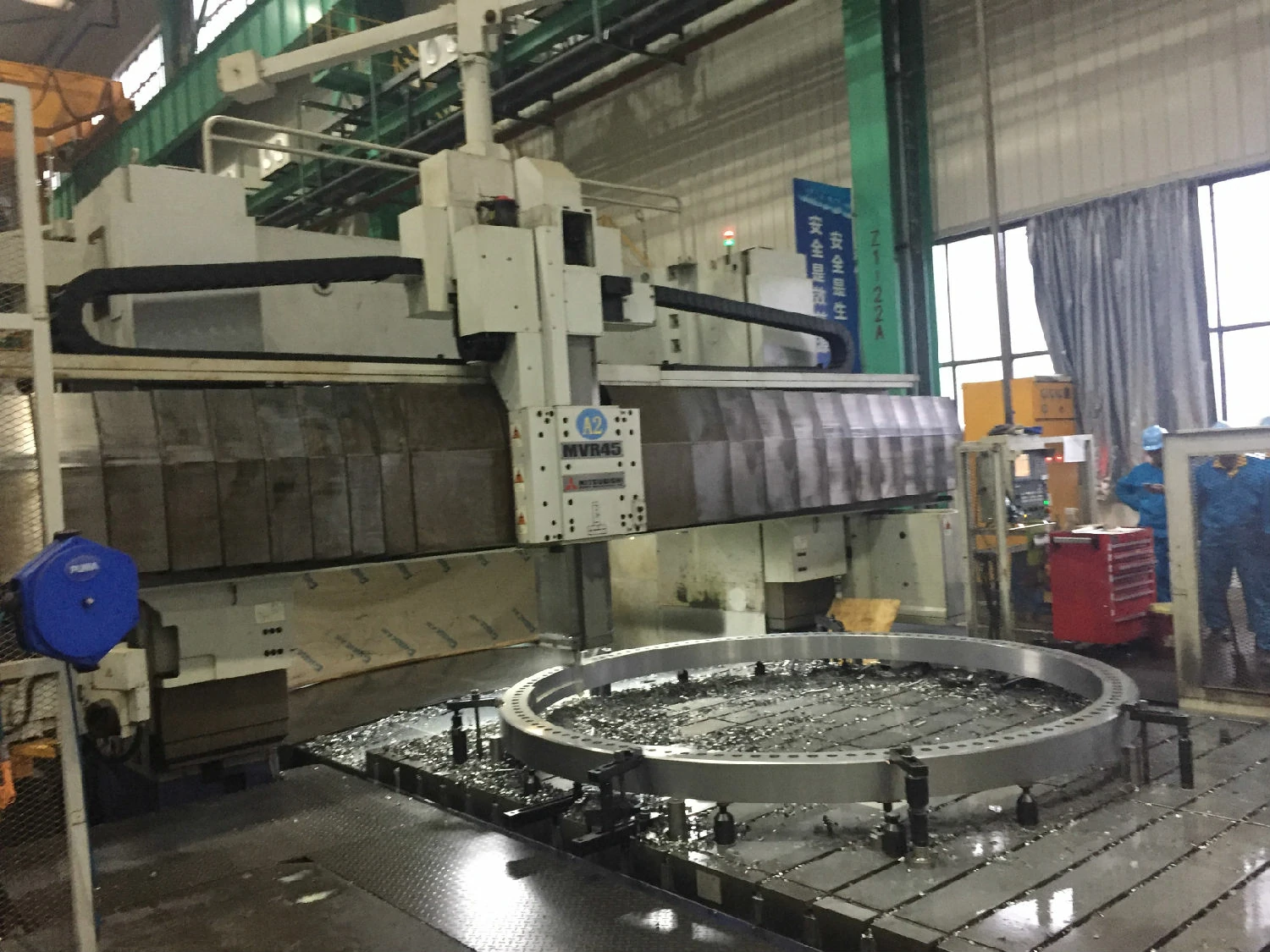

Mitsubishi MVR-45
