Custom Heavy Cylindrical Housing Fabricated for Industrial Dryers: A Case Study

In today's industrial landscape, where efficiency and durability are paramount, custom fabrication plays a crucial role in meeting specific requirements. This article presents a project case study showcasing our company's expertise in fabricating custom heavy cylindrical housing for industrial driers. We leveraged our diverse capabilities and stringent quality control measures to deliver exceptional results that surpassed expectations and ensured the utmost customer satisfaction.

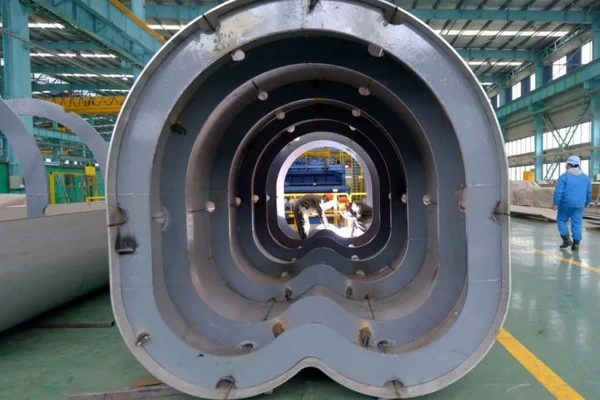

Cylindrical housings fabricated

Project Overview

Our recent project involved the fabrication of cylindrical housings for industrial paddle driers. These housings were designed to be 2.5 meters in height and over 7.5 meters in length, using 12mm thick 304 stainless steel. The objective was to create robust enclosures capable of withstanding the demanding conditions encountered in industrial drying processes.

Fabrication Process

To meet the unique requirements of the project, our facility employed a comprehensive range of capabilities, including de-coiling, precision laser-cutting, beveling, forming, surface treatment, welding, and assembly. Let's delve into the fabrication process that allowed us to bring this project to life.

  1. De-coiling:
    We began by sourcing high-quality 304 stainless steel coils. These coils were carefully uncoiled and prepared for further processing, ensuring the material's integrity and suitability for the project.
  2. Precision Laser-Cutting:
    Using state-of-the-art laser-cutting technology, we precisely shaped the stainless steel sheets into individual panels according to the specified dimensions. Laser cutting allowed for intricate and accurate cuts, ensuring a perfect fit during assembly.
  3. Beveling:
    One of the unique challenges of this project was achieving beveled edges on the cylindrical housing. To overcome this, we employed our precision waterjet cutting machine. This advanced machinery enabled us to create beveled edges precisely, ensuring seamless joint connections.
  4. Forming:
    With the panels prepared, we utilized specialized forming techniques to give them the desired cylindrical shape. This involved carefully bending and shaping the panels to match the specifications provided by the client.
  5. Surface Treatment:
    To enhance the durability and corrosion resistance of the housing, we applied a surface treatment process. This involved cleaning, prepping, and applying a protective coating, ensuring longevity in harsh industrial environments.
  6. Welding and Assembly:
    The fabricated panels were then meticulously welded together using advanced welding techniques. This step involved precision welding to ensure structural integrity and create a robust housing capable of withstanding heavy-duty operations. After welding, the housing components were meticulously assembled to make the final structure.
  7. Quality Control:
    Throughout the fabrication process, we implemented stringent quality control measures to ensure that the final product met the highest standards. Our skilled inspectors performed comprehensive inspections at each stage, verifying dimensional accuracy, material integrity, weld quality, and overall workmanship. This attention to detail guaranteed that the finished cylindrical housings exceeded expectations.

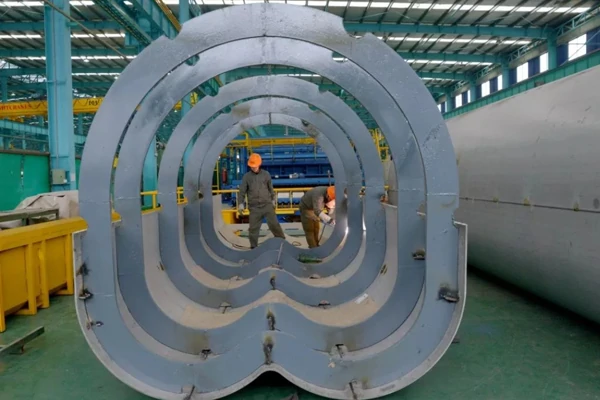

Cylindrical housings fabrication

At Openex, we specialize in delivering custom fabrication solutions tailored to our clients' unique needs. We consistently exceed customer expectations with our diverse capabilities, cutting-edge technology, and unwavering commitment to quality.

Whether you require heavy cylindrical housings, intricate components, or complex fabrications, our team of experts is equipped to tackle any project. Contact us at sales3@openex.com.cn today to discuss how we can assist you in achieving your fabrication goals.
