Muffler Flanges Manufactured For Diesel Engine

Catalog

  • What's Diesel Muffler?
  • What's Muffler Flange?
  • Types of Muffler Flanges used in Diesel Engine
  • How to Choose a Flange Manufacturer?
  • Flange Manufacturing Capabilities of Openex

Those flanges used in the diesel silencer adopt 304 stainless steel with a thickness of 10mm. Muffler flanges are manufactured using a variety of fabrication techniques, including leveling, grinding, laser cutting, machining, finishing, etc.

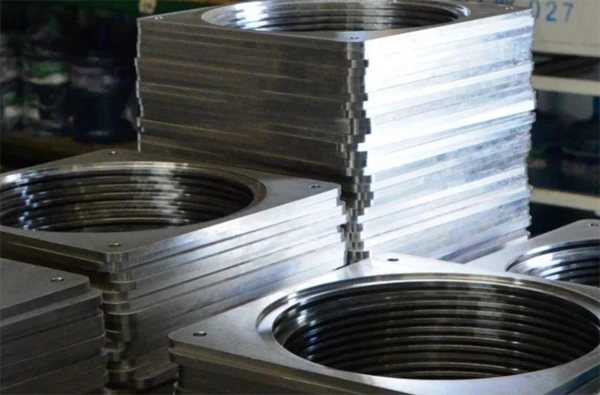

Muffler flange for diesel engine

Before introducing muffler flanges, let's first understand what is a diesel muffler.

What's Diesel Muffler?

A diesel muffler is a device used in diesel engine exhaust systems to reduce the noise produced by the engine. It works by using a series of chambers and baffles to slow down the flow of exhaust gases, which in turn reduces the noise level. The muffler also filters out some of the harmful pollutants and particulate matter that are present in diesel exhaust.

Diesel mufflers can come in various shapes and sizes, but they all serve the same basic purpose of reducing noise and emissions. They are typically made of metal and are installed in-line with the exhaust system, usually near the rear of the vehicle.

In addition to reducing noise pollution, diesel mufflers also play an important role in meeting emissions regulations. Many countries have strict regulations on the amount of noise and pollutants that can be emitted from a vehicle's exhaust, and diesel mufflers help ensure that these regulations are met.

What's Muffler Flange?

A diesel muffler flange is a component that is used to connect the diesel muffler to the exhaust pipe on a diesel engine. It is typically a flat, circular plate with holes for bolts or screws that attach the muffler to the exhaust pipe.

The muffler flange is an important part of the exhaust system because it helps to seal the connection between the muffler and the exhaust pipe. This is necessary to prevent exhaust gases from leaking out of the system and potentially causing harm to the environment or the people around the vehicle.

The flange may be made of a variety of materials, including steel, stainless steel, or aluminum, depending on the requirements of the application. It is often designed to be bolted or welded onto the muffler and the exhaust pipe, providing a secure and durable connection.

When replacing a diesel muffler or installing a new one, it is important to ensure that the flange matches the size and specifications of the muffler and the exhaust pipe to ensure a proper fit and seal.

Types of Muffler Flanges Used in Diesel Engine

There are several types of muffler flanges used in diesel engine exhaust systems, Here are a few common types:

  • Flat flange: This is the most basic type of muffler flange. It consists of a flat plate with bolt holes that is used to connect the muffler to the exhaust pipe. Flat flanges are commonly used in low-pressure applications.
  • V-band flange: This type of flange uses a V-shaped clamp to connect the muffler to the exhaust pipe. V-band flanges are commonly used in high-pressure applications, as they provide a strong and leak-proof connection.
  • Ball and socket flange: This type of flange uses a ball and socket joint to connect the muffler to the exhaust pipe. It allows for some flexibility in the exhaust system, which can help reduce stress on the system and prevent cracking.
  • Slip fit flange: This type of flange is designed to allow the muffler to slip over the end of the exhaust pipe. It is commonly used in situations where the muffler needs to be removed frequently for maintenance or repair.
  • Weld flange: This type of flange is designed to be welded directly to the muffler and the exhaust pipe. It provides a strong and permanent connection, but may be difficult to remove if the muffler needs to be replaced.

How to Choose a Flange Manufacturer?

Choosing a flange manufacturer can be an important decision to ensure the quality, durability, and performance of your piping system. Here are some factors to consider when choosing a flange manufacturer:

  1. Experience and expertise: Look for a manufacturer with a proven track record of producing high-quality flanges. Check their website, customer reviews, and any available certifications or awards.
  2. Materials and manufacturing processes: Choose a manufacturer that uses high-quality materials and proven manufacturing processes. Ask about their quality control measures and testing procedures to ensure that their products meet the necessary specifications and requirements.
  3. Range of products: Look for a manufacturer that offers a wide range of flange types and sizes to meet your specific needs. This will give you more options and flexibility when designing and installing your piping system.
  4. Customization capabilities: Consider a manufacturer that can provide customized flanges to fit your unique requirements. This can include custom sizes, shapes, or materials.
  5. Pricing and lead times: Compare the pricing and lead times of different manufacturers to find one that offers competitive prices and reliable delivery times.
  6. Customer service and support: Look for a manufacturer that provides excellent customer service and technical support. This can include helpful resources, such as installation guides or technical specifications, and responsive communication to any questions or concerns.
  7. Standards and certifications: Check if the manufacturer adheres to industry standards and regulations, and if they have relevant certifications, such as ISO or ASME.

Flange Manufacturing Capabilities of Openex

Openex is a global manufacturer of various flanges. Upon request, we manufacture the forging of flanges and blinds that are custom-designed to customer dimensional requirements. We have an extensive track record of producing flanges from a wide variety of material grades. Our extensive raw material inventory allows us to manufacture forged flanges to the most challenging customer-specified product chemistry requirements.

General Capabilities:

Flange Manufacturing Types :

  • Custom/Special Flanges
  • Precision Flanges
  • Tube Sheets
  • Blind Flanges
  • "Special" Thickness & Diameters
  • Reducing Flanges
  • Lightweight Flanges
  • Spectacle Blinds / Paddle Blinds
  • Mechanical Joint / MJ Bell
  • Slip on Flange
  • Rings
  • Back-up Flanges
  • Pressure Vessel Flanges
  • Tower Flanges
  • Wind Tower Flanges
  • Industrial Adapter Flanges

Materials:

  • Carbon Steel
  • A105 Forging
  • A36
  • A516-70A572-50
  • A588
  • HSLA
  • Stainless Steel
  • Titanium
  • Others

General Processing:

  • Flange Marking
  • CNC Drilling
  • CNC Machining
  • Conventional Machining
  • Counter Boring
  • Counter Sinking
  • Thermal Stress Relieving
  • Taping
  • Coating
  • Non-Destructive Testing
  • Robotic Welding
  • Automatic Welding Positioners

Diameter:

Up to 10 meters OD

We are ISO, CE, ASME, API, LR certified companies. Our dedicated and professional quality control team guarantees our products meet the highest standards.

Contact us at sales3@openex.com.cn or call us at +86 186 5928 0806 for more information about manufacturing for flanges and to receive a free project quote today.
