August 10, 2022

Heavy fabricated carbon steel tower

Product: Carbon Steel Tower
Dimension: Length 80m, Diameter 4m, Thickness 22mm.
Weight: approximately 300Ton
The product has a very long shell, a large diameter, a thin skin, and a 90-layer tray support ring inside. It is very difficult to manufacture it. In addition, the tower product has very strict requirements on its straightness, ellipticity, and dimensional accuracy of internal and external components to ensure the precise connection of the steel parts.

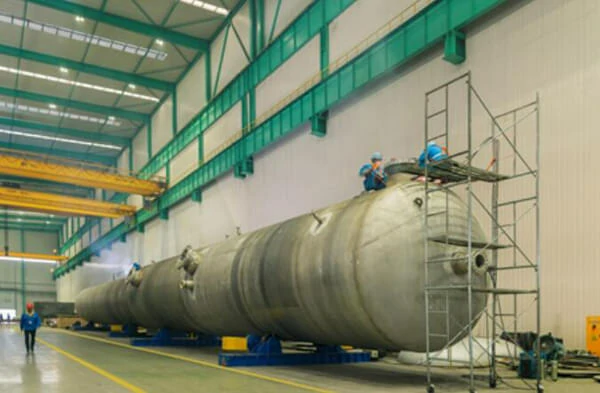

Heavy Welding of pressure vessel
Heavy Welding

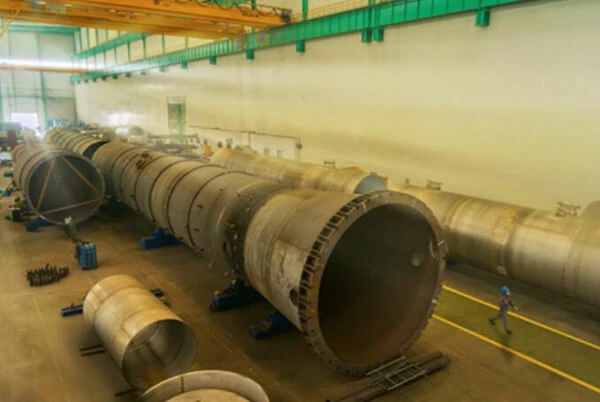

Pressure Vessel Parts before assembly
Pressure Vessel Parts before assembly

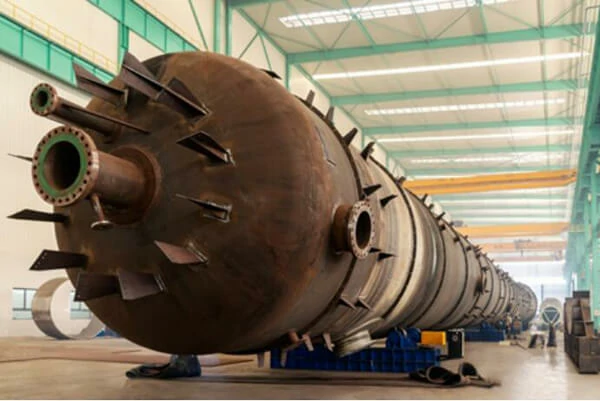

assemblied before welding
assembled before welding

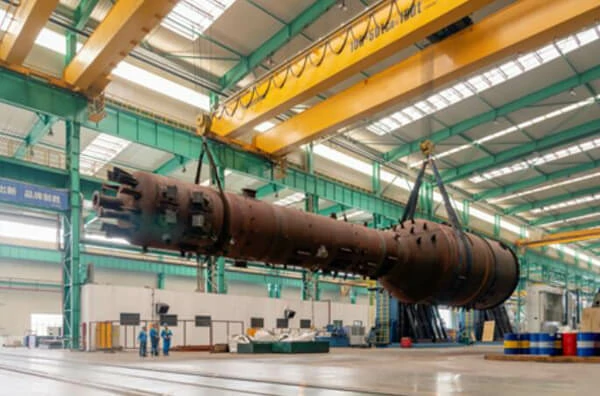

lifting and transporting
lifting and transporting

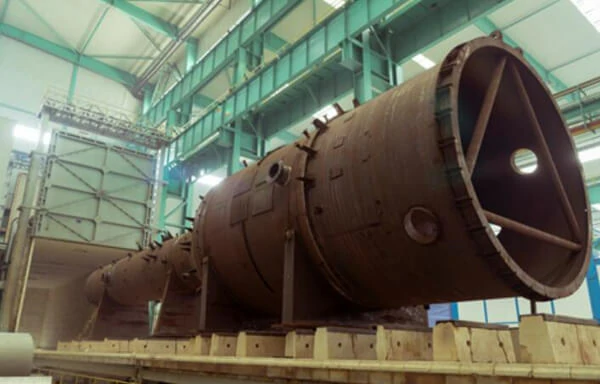

Heat treatment
Heat treatment

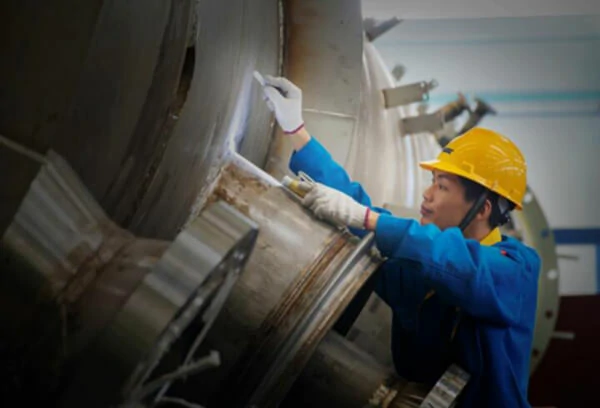

Quality control
Quality control

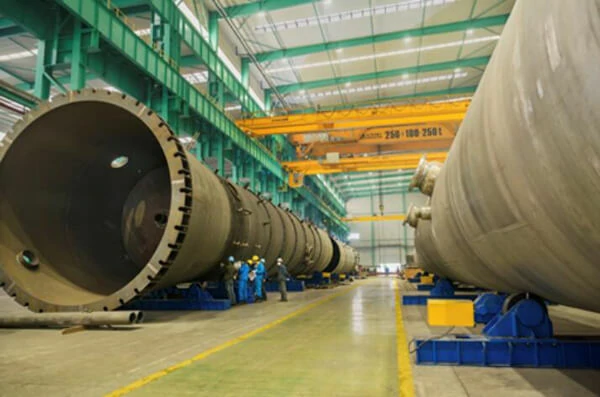

Customers Spot Inspection
Customers Spot Inspection

About Openex

Openex is home to a full-service, one-stop-shop, contract manufacturing company producing custom large machined parts and fabrications. Our full large fabrication services including large machining, cutting, welding, rolling, punching, braking, testing, painting, and others.
